Model: 6170

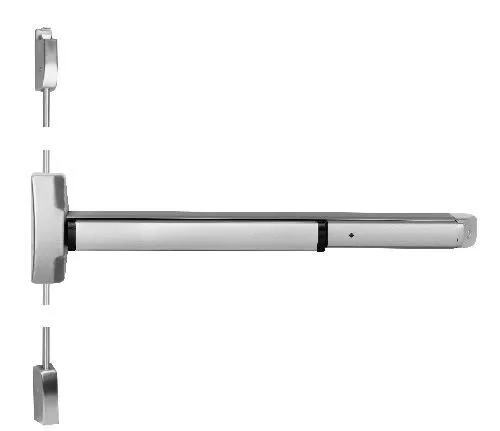

Yale 6170 / 6170F Series Wide Stile Surface Vertical Rod Exit Device
For use on doors up to 3'-0" x 7'-0" x 1 3/4". Other sizes available by special order.
Features of the Yale 6170(F) Series Surface Vertical Rode Exit Device:
The Yake 6000 series exit device is robust, has a modern design and has smooth & quiet operation. The Yale 6000 device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.
- Exit Only or add-on option exiterior trim.
- Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar
- Stylish: Attractive, modern design blends aluminum rail with architectural finishes
- Strong and Reliable: ANSI/BHMA Grade 1 certified for long life
- Secure: Multiple security features provide added resistance against vandalism and authorized entry
- For doors up to 3'-0" x 7'-0"
Details and product specs of the Yale 6100 series rim exit device:
| Applications: | 1-3/4" Metal, wood or composite doors for interior and exterior openings |
| Door Thickness: | 1 3/4 standard |
| Available Finishes: |
US32D/630 - Satin Stainless Steel |
| Rail Sizes: | 36" for 30" - 36" doors: Stock 48" for 42" - 48" doors: By Special Order. Please Contact MDI. |
| Projection: | 3 1/4" (83 mm) active; 2 1/2" (63.5 mm) dogged |
| Fasteners: | Machine screws or wood door screws standard for panic; sex nuts and bolts (SNB) supplied standard for fire rated |
| Device Type: | Surface Rod Device - includes both top and bottom rods. |
| Hubs: | 3/8" solid steel, fine-blanked and heat treated for additional strength. |
| ANSI/BHMA/UL: | Certified ANSI/BHMA A156.3 T ype 1 Grade 1 standards UL Listed for Fire Doors use 6170F |
| Latchbolt: | Stainless steel pullman style, 3/4" (19mm), deadlocking |
| Dogging: | Hex key dogging standard on panic; Not available on fire rated (6170F) |
| Handed: | Non-Handed. |
| Available Trim Options: |
EXIT ONLY - No exterior trim. Nothing outside (no lever, no cylinder). Levers are shipped as 626/US26D (satin chrome). Yale does not make the lever trim in satin stainless steel. |
| Cylinders & Keyway: |
CYLINDERS: |
| Factory Warranty: |
10-year Limited Warranty (on exit device only); 440F series rose trim carries a 2-year factory warranty. |
| Mfg Model #: | 6170 / 6170F |
| MDI Supply Item #: | Yale-6170-32D |
| Packaged & Sold: | Individually |
