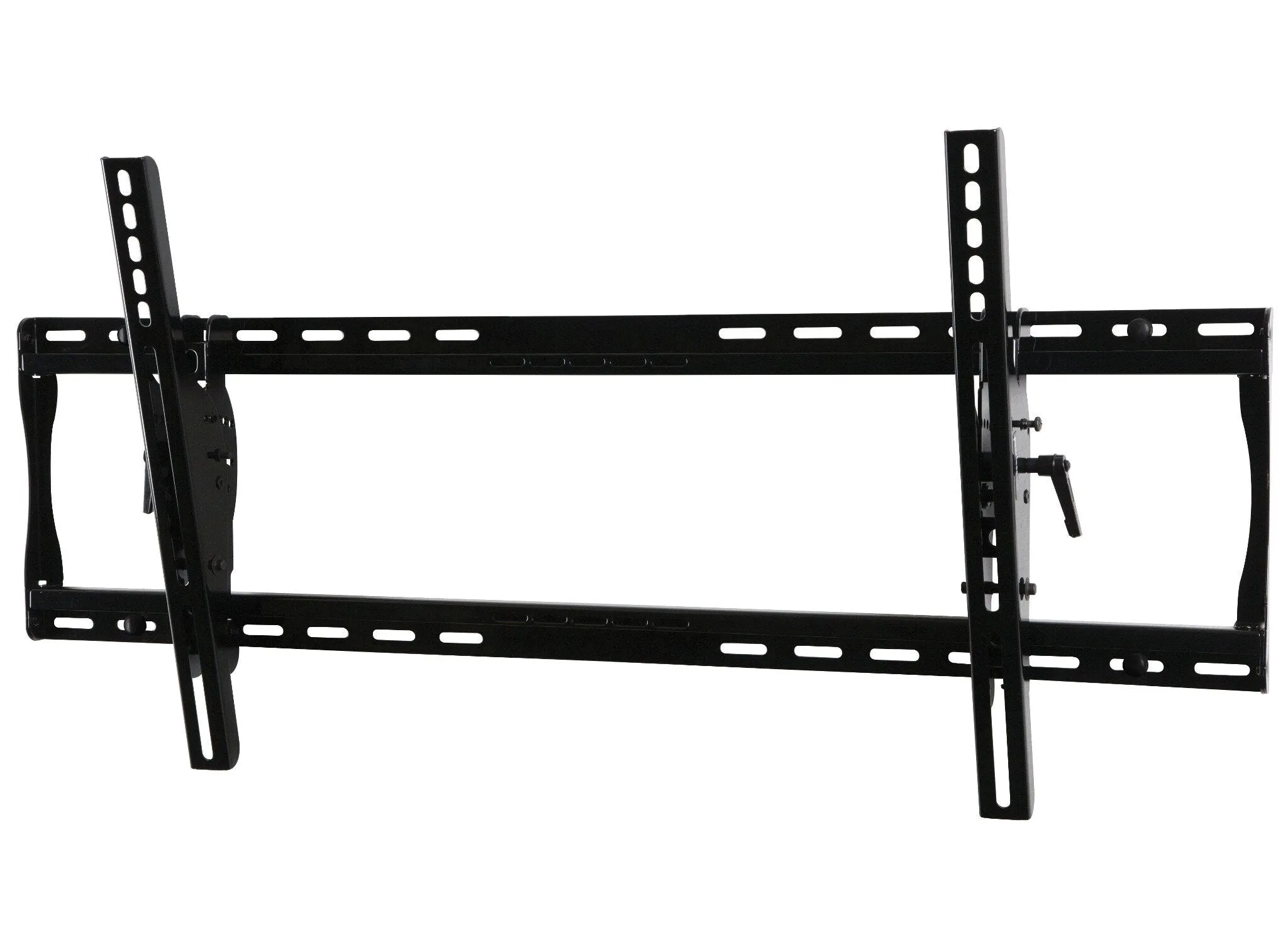

Paramount Universal Tilt Wall Mount for 39" to 90" Displays

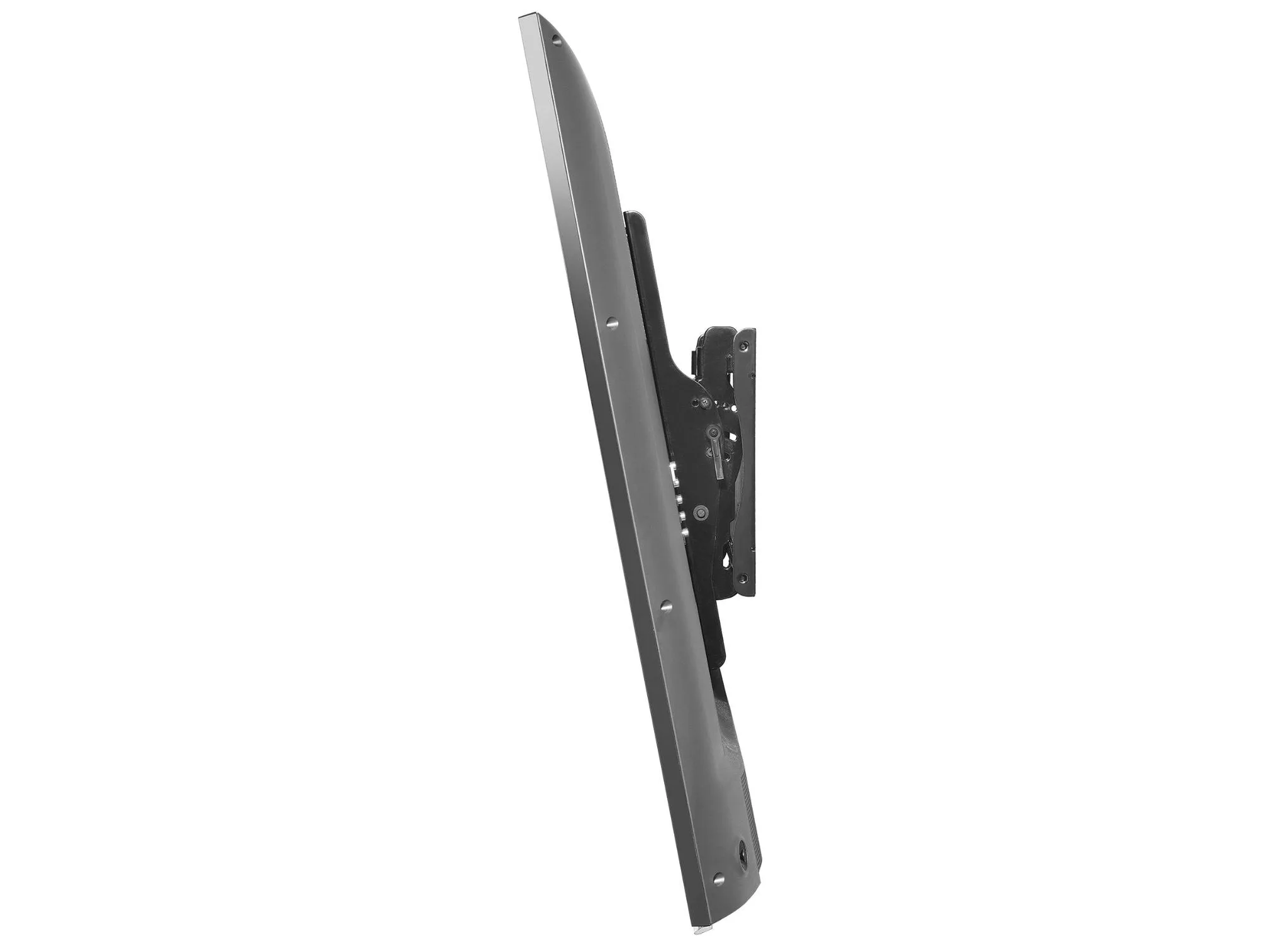

The Paramount™ series wall mounts provide versatile and multi-functional features. With PT66, a low-profile design positions the display just 2.63" (67mm) from the wall. The Hook-and-Hang™ system offers easy, one-person installation of the display. The Easy-Glide™ adaptors hook onto the wall plate for a quick, simple, and secure installation. Achieve perfect positioning of the display with the side-to-side adjustment after installation. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok™ tilt technology.
| Mounting |
|---|
| Number of displays supported |
1 |
| Maximum VESA mount |
800 x 400 mm |
| Mounting type |
Wall |
| Maximum screen size |
2.29 m (90") |
| Minimum screen size |
99.1 cm (39") |
| Maximum weight capacity |
91 kg |
| Ergonomics |
|---|
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 15° |
| Design |
|---|
| Certification |
UL |
| Product colour |
Black |
| Packaging content |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
|---|
| Weight |
3.86 kg |
| Height |
429 mm |
| Depth (max) |
13.9 cm |
| Depth (min) |
6.7 cm |
| Width |
936 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
4.85 kg |
| Package height |
75 mm |
| Package depth |
272 mm |
| Package width |
925 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
