Product Details
＋
Highlights

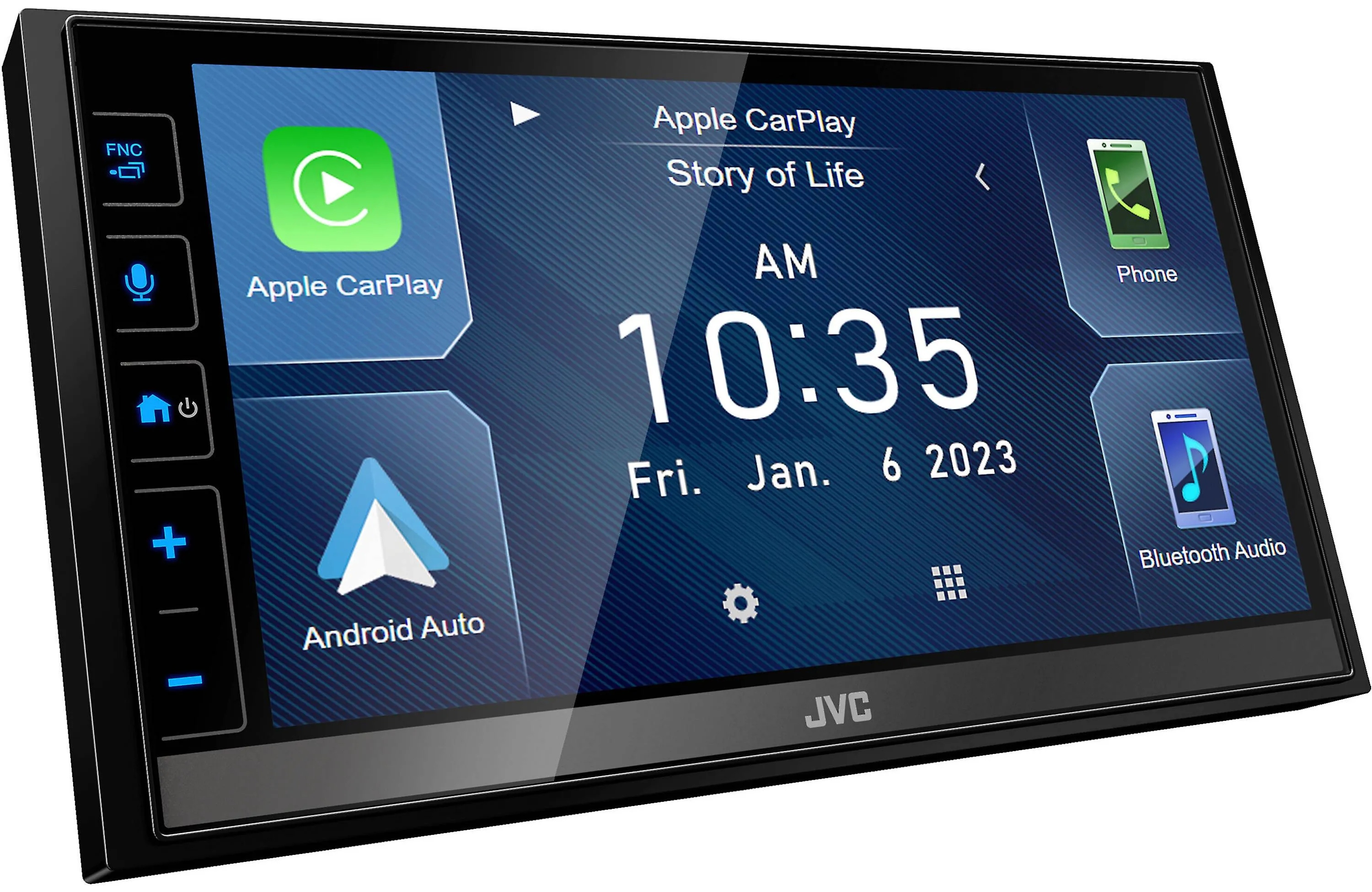

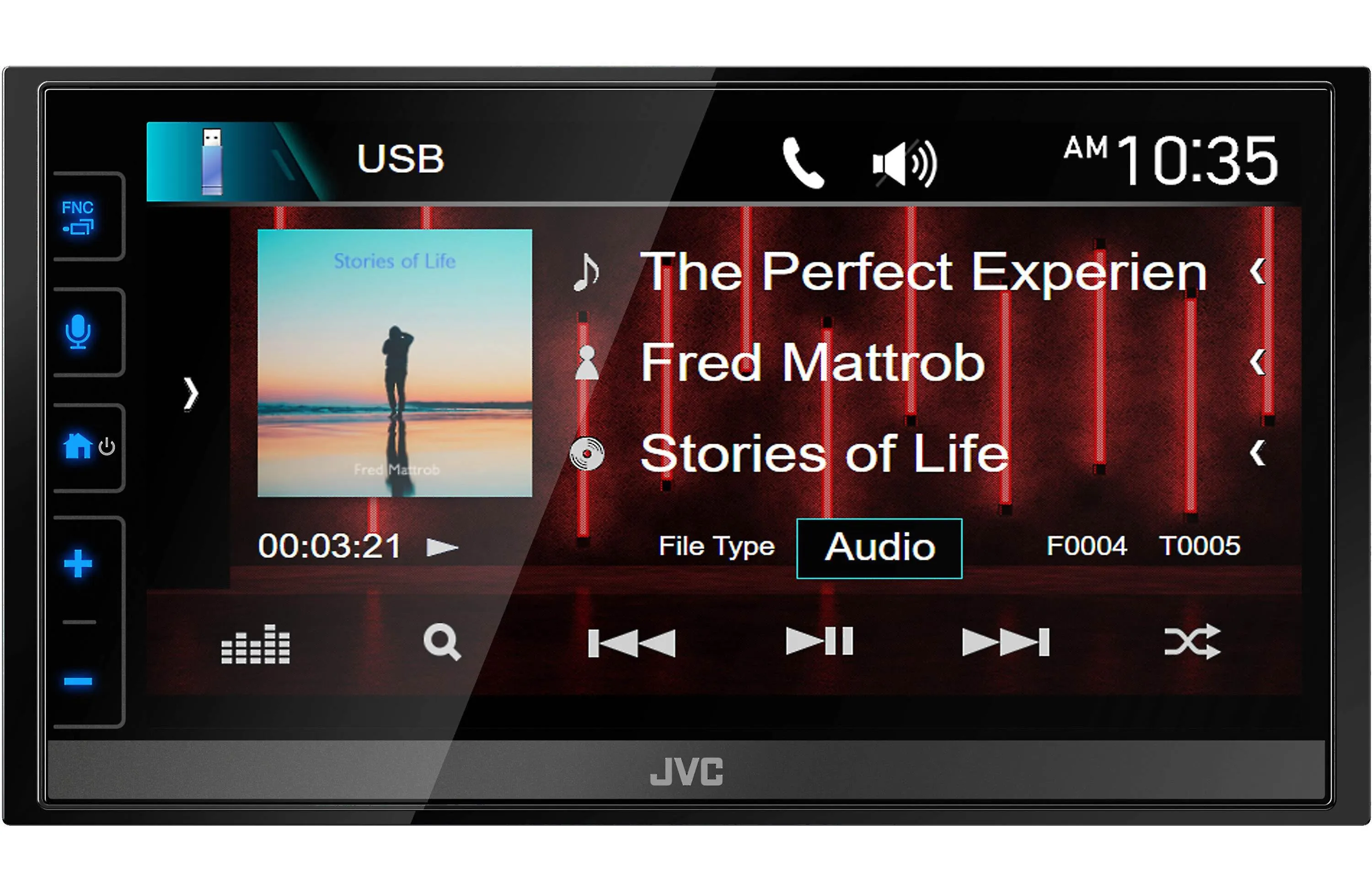

- Digital multimedia player with AM/FM tuner

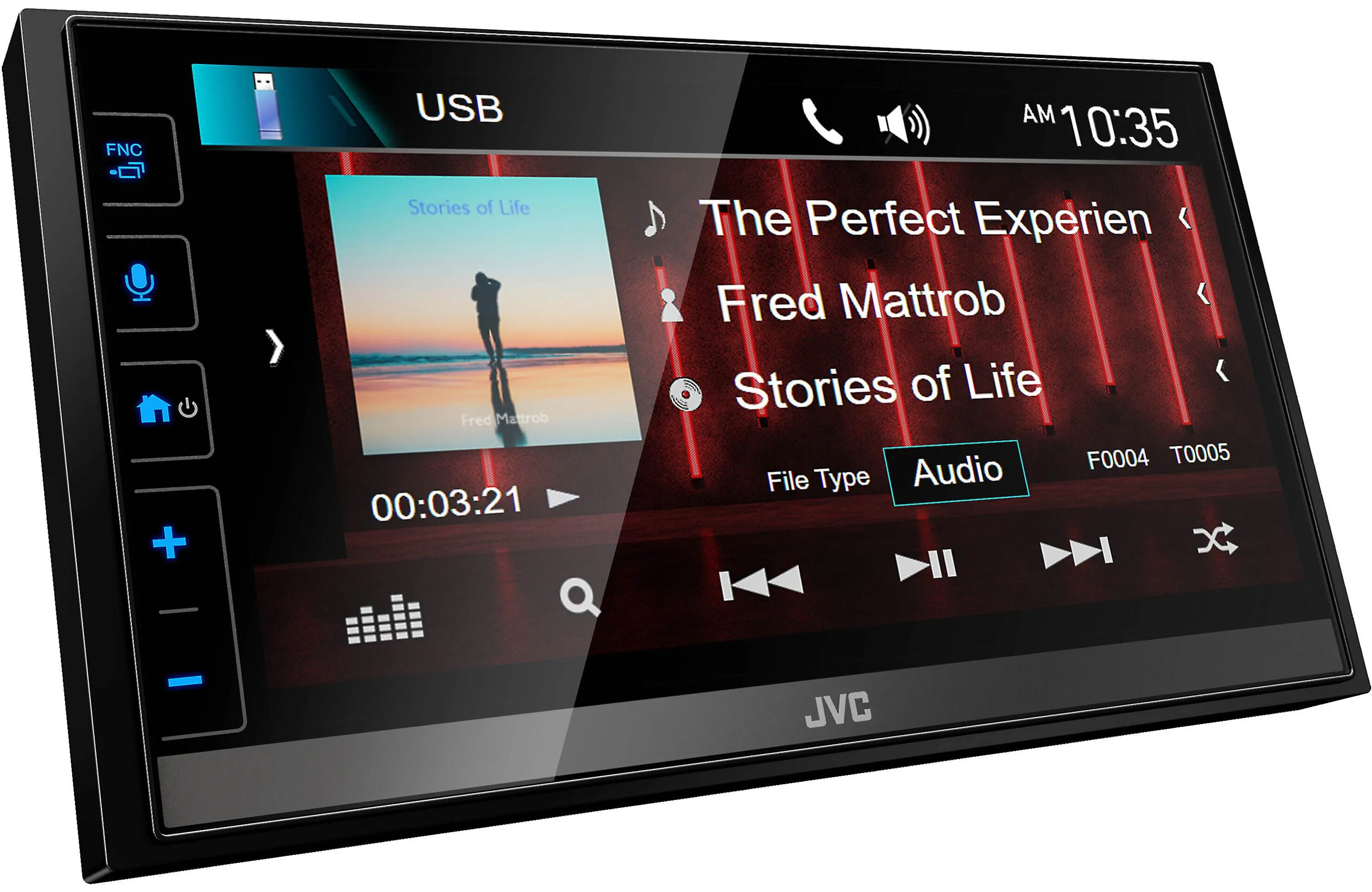

- Plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)
- 6.8" capacitive touchscreen display
- HD Radio tuner built-in
- Waze-ready with Apple CarPlay or Android Auto
- Electronic viewing angle display adjustment

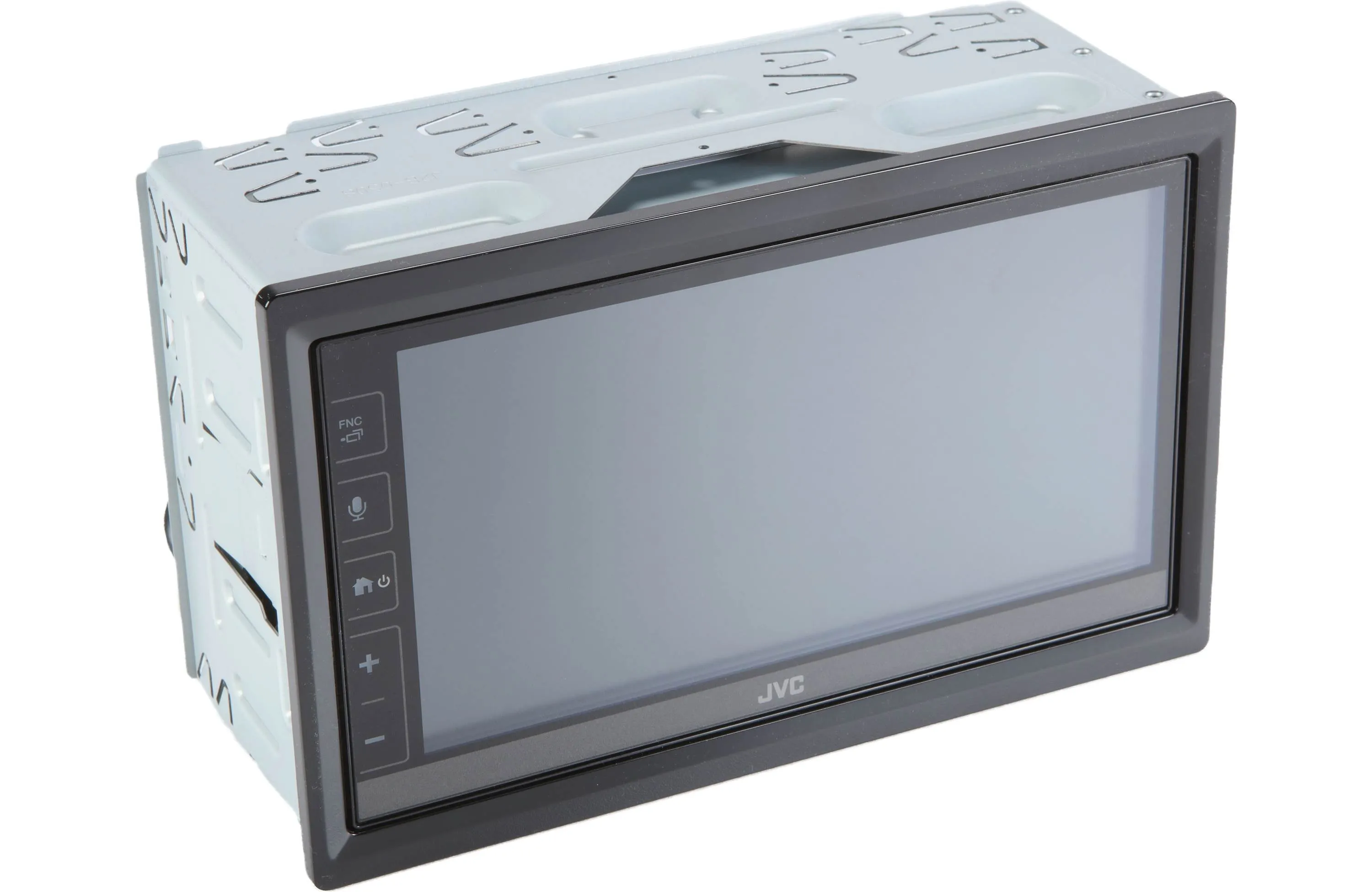

- Fits double-DIN (4" tall) dash openings
Smartphone Features
- Display and command of select music, navigation, and other apps with iPhone and Android

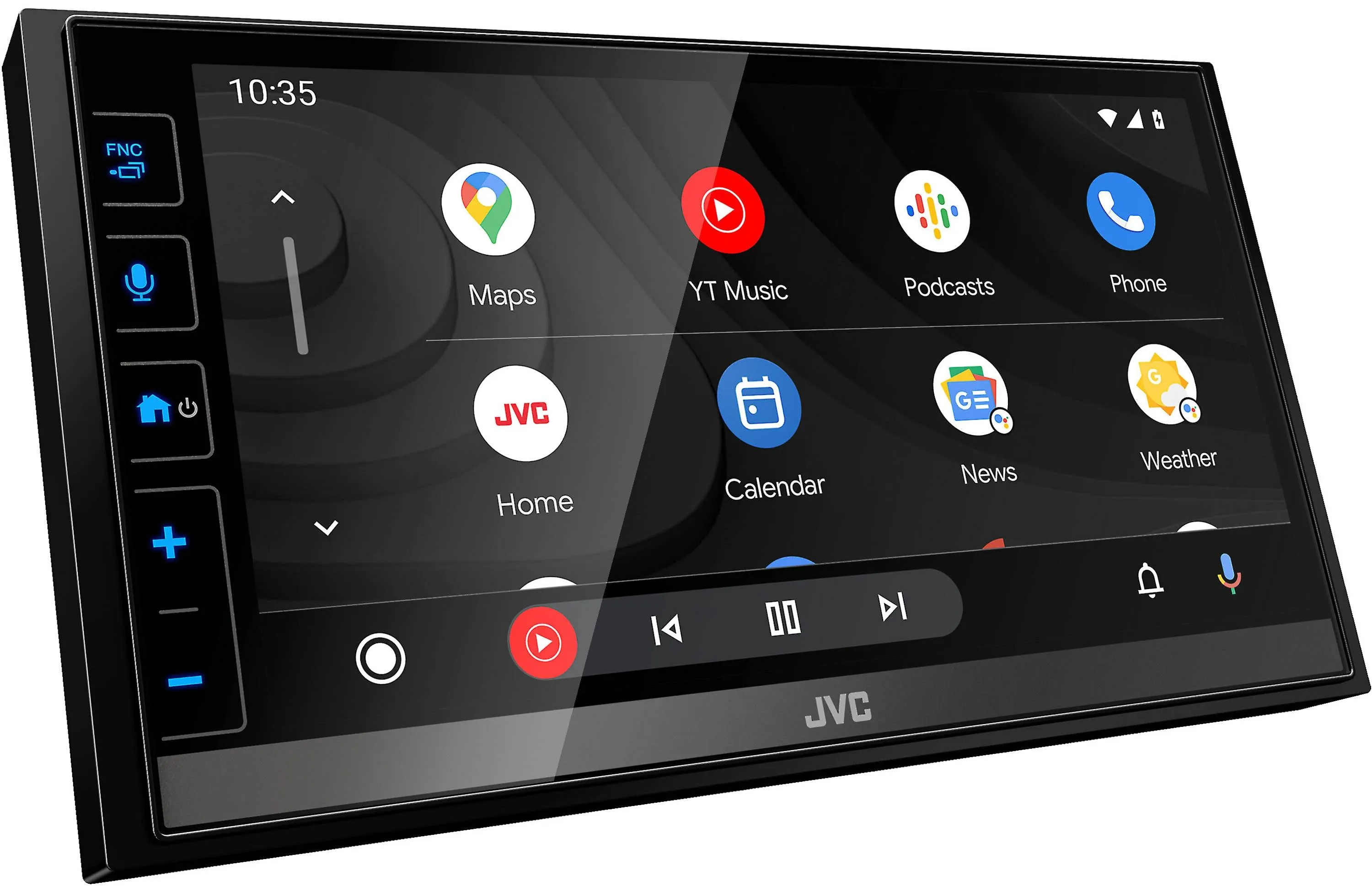

- Wired Android Auto compatible
- compatible with Google Assistant when using Android Auto

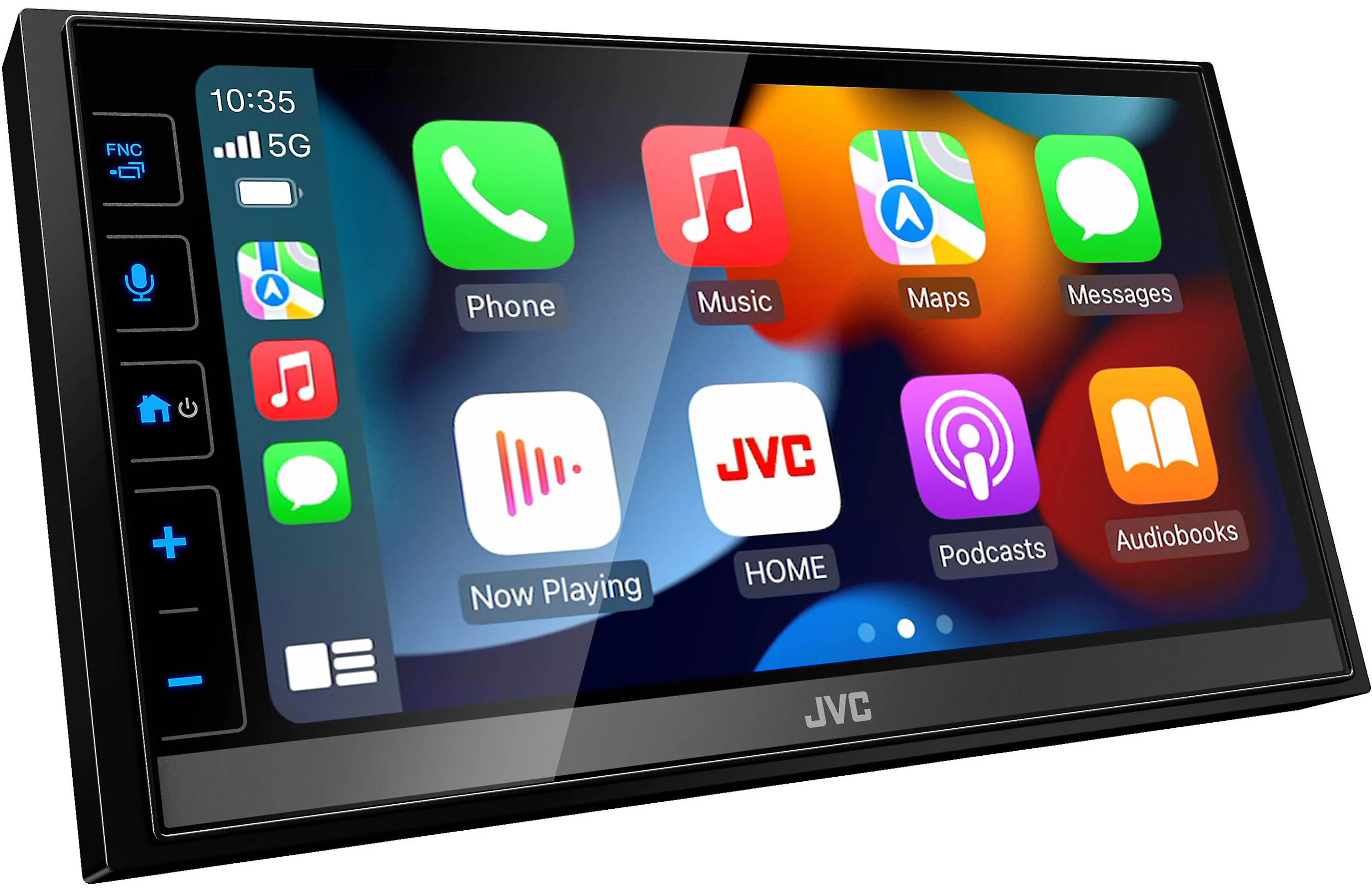

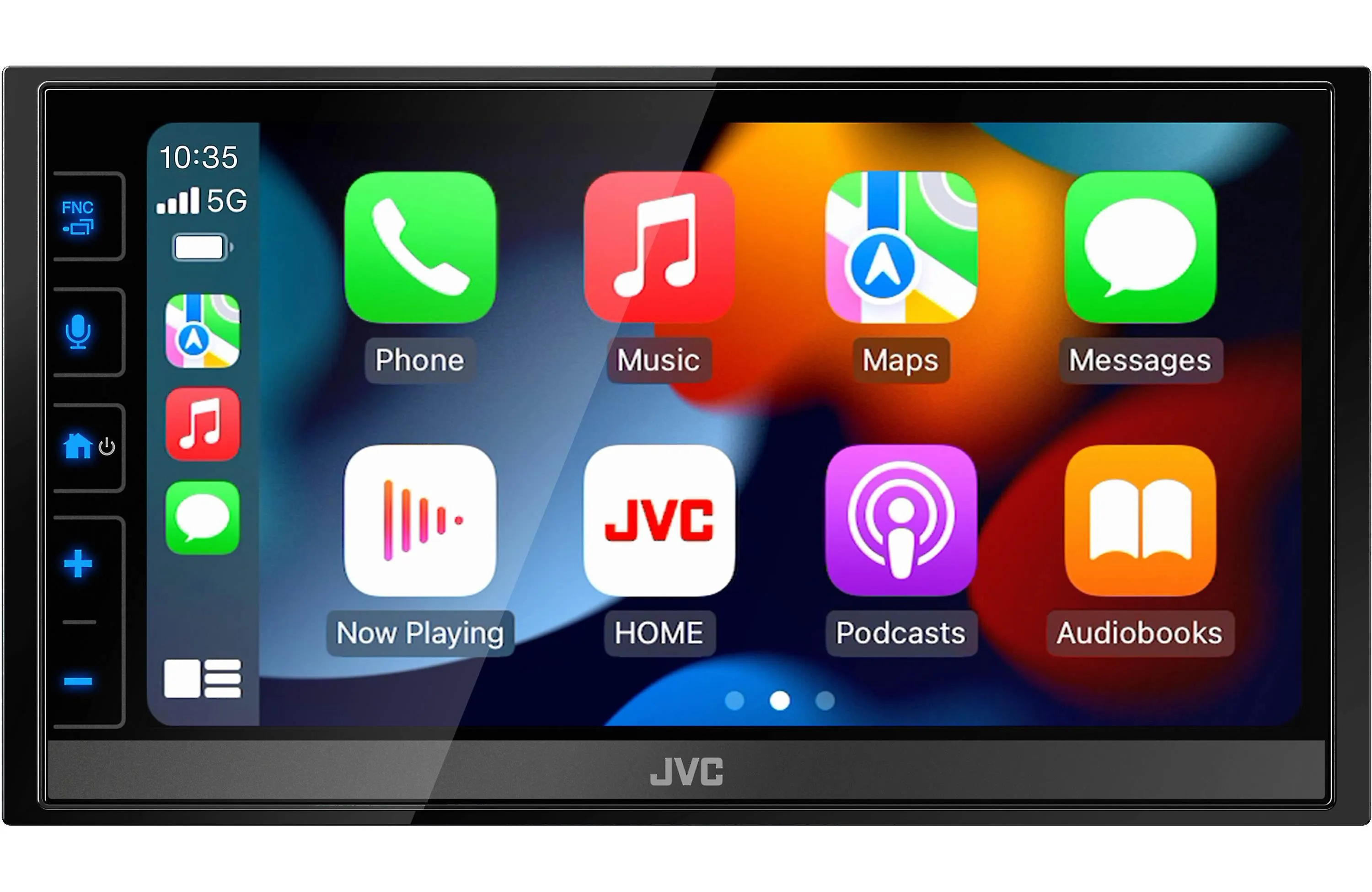

- Wired Apple CarPlay compatible
- Siri Eyes Free control for select iPhones
- Wired USB mirroring for select Android devices
- Wired micro HDMI mirroring for select smartphones (cable and adapter sold separately)
- Built-in Bluetooth with dual phone connection for hands-free calling and music streaming
- Built-in iPhone and rapid Android charging via USB port
Audio Video Features
- 13-band graphic EQ
- Digital time alignment
- Volume Link EQ boosts frequencies that are affected by road noise
- 3-way crossover
Expandability
- Compatible with SiriusXM satellite radio tuner

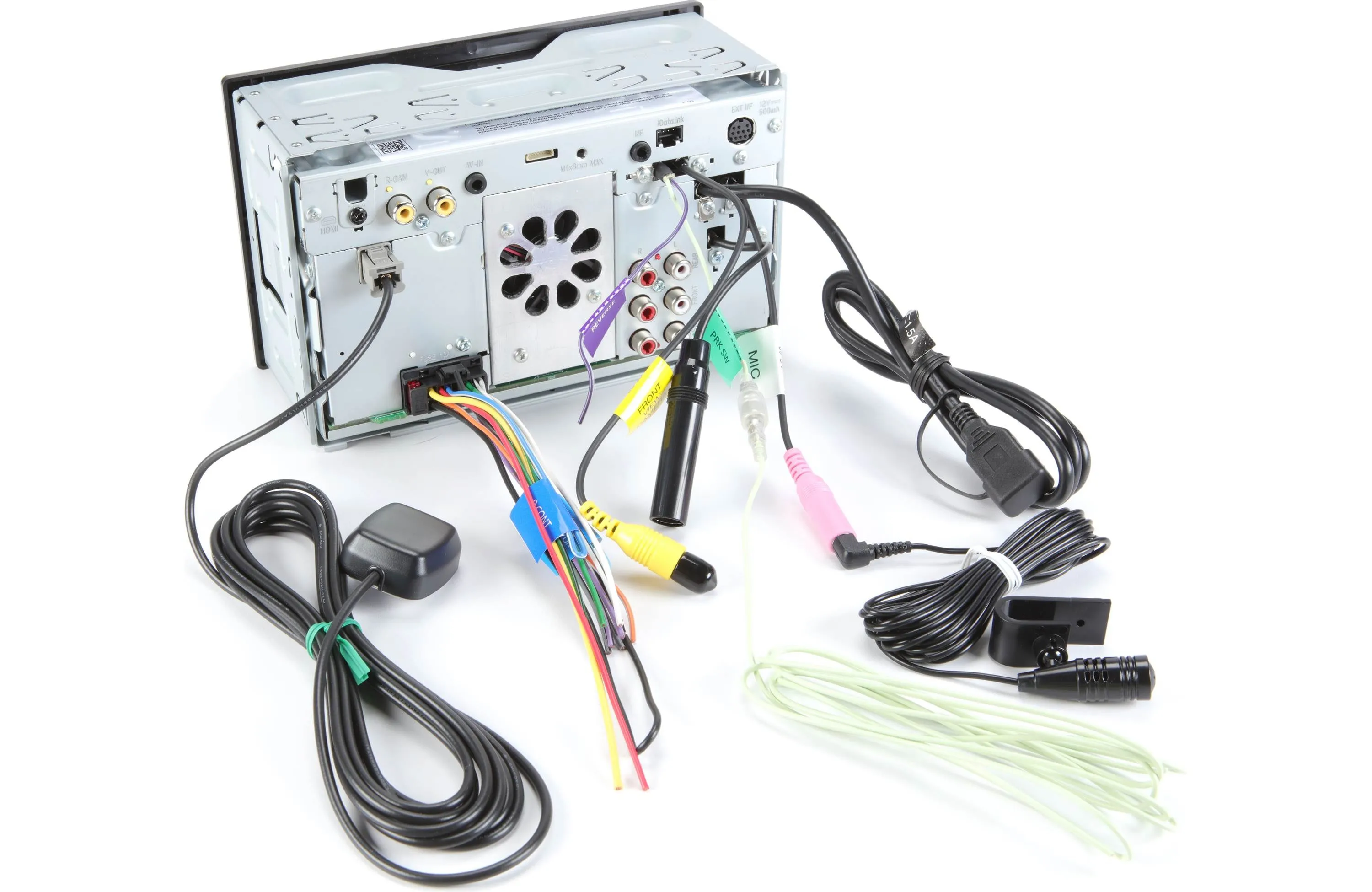

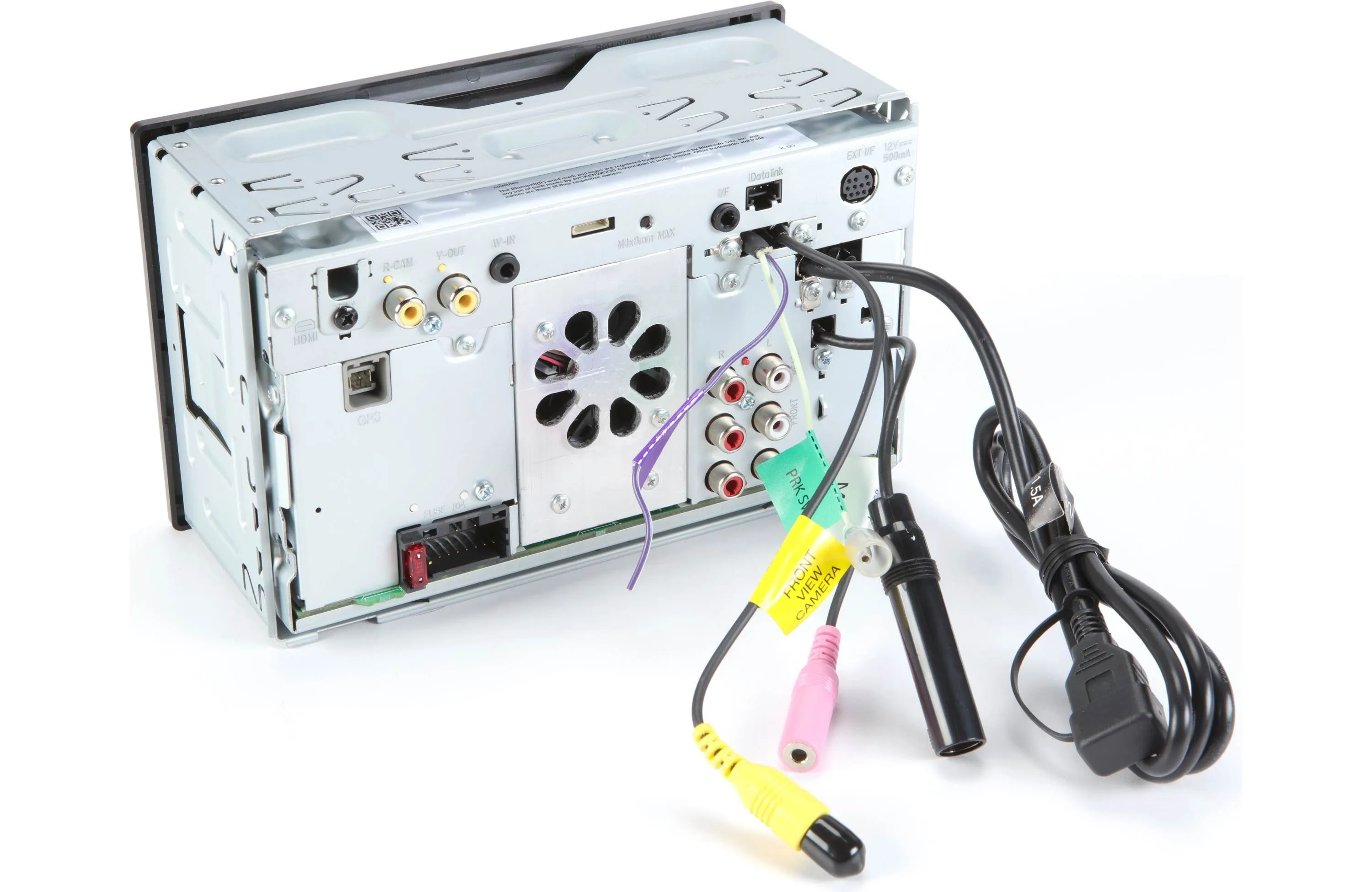

- Inputs: rear USB input, front- and rear-camera inputs, rear micro HDMI input, rear analog 3.5 mm A/V input (configurable for a third camera input)
- Outputs: rear analog video output (RCA), 6-channel preamp outputs (5-volt front, rear, sub)
| AUX Input | Mini (rear) |
| Audio / Video Input | HDMI (rear), Mini (rear) |
| USB Input | Rear |
| USB Port Power | 1.5A |
| Backup Camera Input | Yes |
| Second Camera Input | Yes |
| CarPlay | Yes |
| Android Auto | Yes |
| Memory Card Slot | USB memory |
| Bluetooth Compatible | Built-In |
| Satellite Radio Ready | SiriusXM 2.0 |
| HD Radio | Yes |
Specifications
| RMS Power (CTA-2006) | N/A |
| RMS Power (Manufacturer) | 22 watts |
| Peak Output | 50 watts |
| RMS Power Bandwidth | 20 - 20k Hz |
| Preamp Output | 6-channel |
| Sub Preamp Outputs | Yes |
| Switchable Rear Preamp Outputs | No |
| Preamp Voltage | 5 volts |
| Screen Size | 6.75" |
