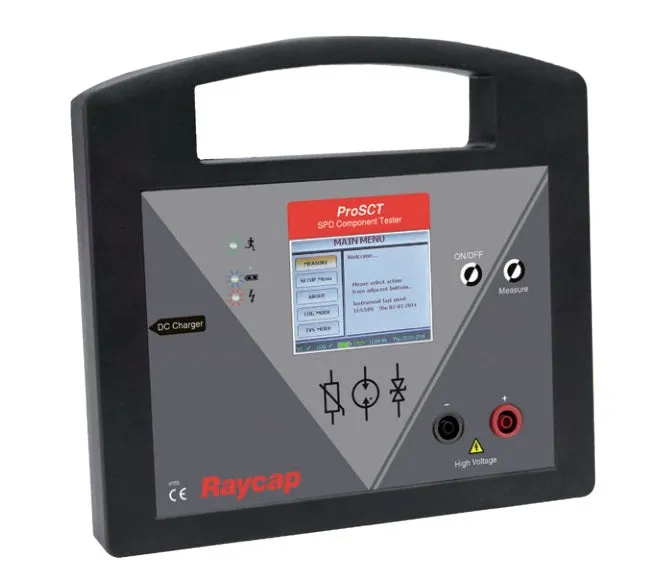

G29-00-159-ProSCT, Portable DC SPD Tester, 1500VDC,  0.1 - 1mA test current, Integrated battery with up to two years lifetime, TFT Touch screen. For DC Testing of MOV, GDT, TVS  with LOG Mode, Auto Detect, Date of Event, Includes Suitcase and Quick Connect Adaptor

General Description

For Functional Testing/Measurement of MOV, GDT, TVS. With Logging, auto Detection and Date of Event Features

Features

With the G29 ProSCT you can measure

• MOV, GDT, TVS, Surge Protection Device Tester (DC)
• Test current MOV/TVS 0.1mA:0.5mA:1mA
• Test Voltage 1500VDC (max)
• Voltage Ramp (GDT) 100V/s; 1000V/s
• Integrated battery
• Automatic connection detection
• Operating Temperature -10 °C to 50 °C
• IP20
• UL(4V0 Plastic Housing
• 320x240 pixel TFT Colour with Touch Screen interface

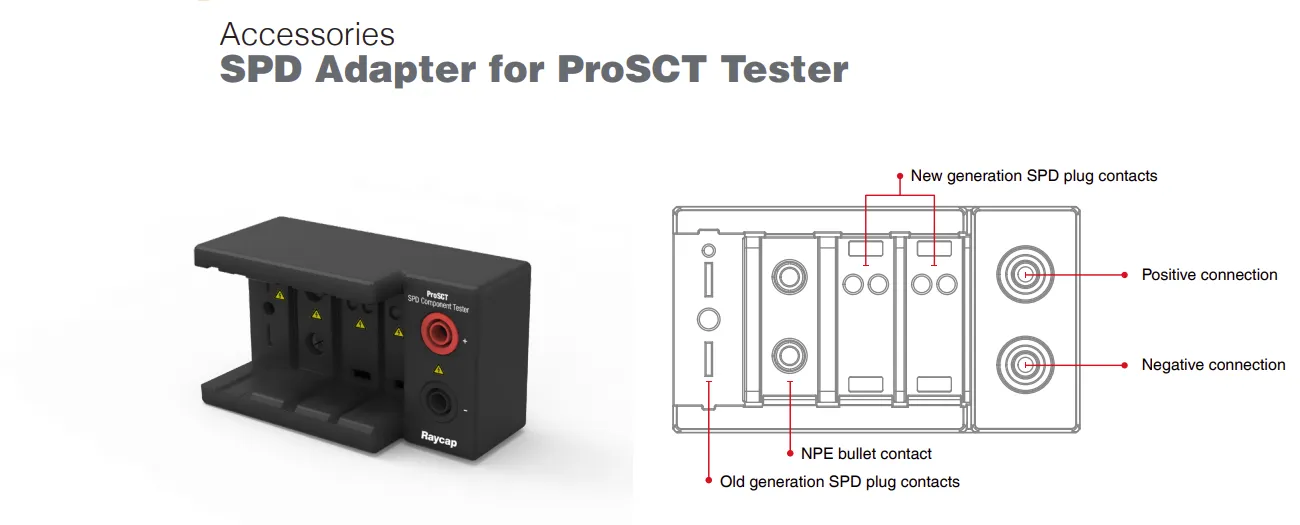

• Comes with Quick connect adaptor and Suitcase

Datasheet
