Product Details
＋

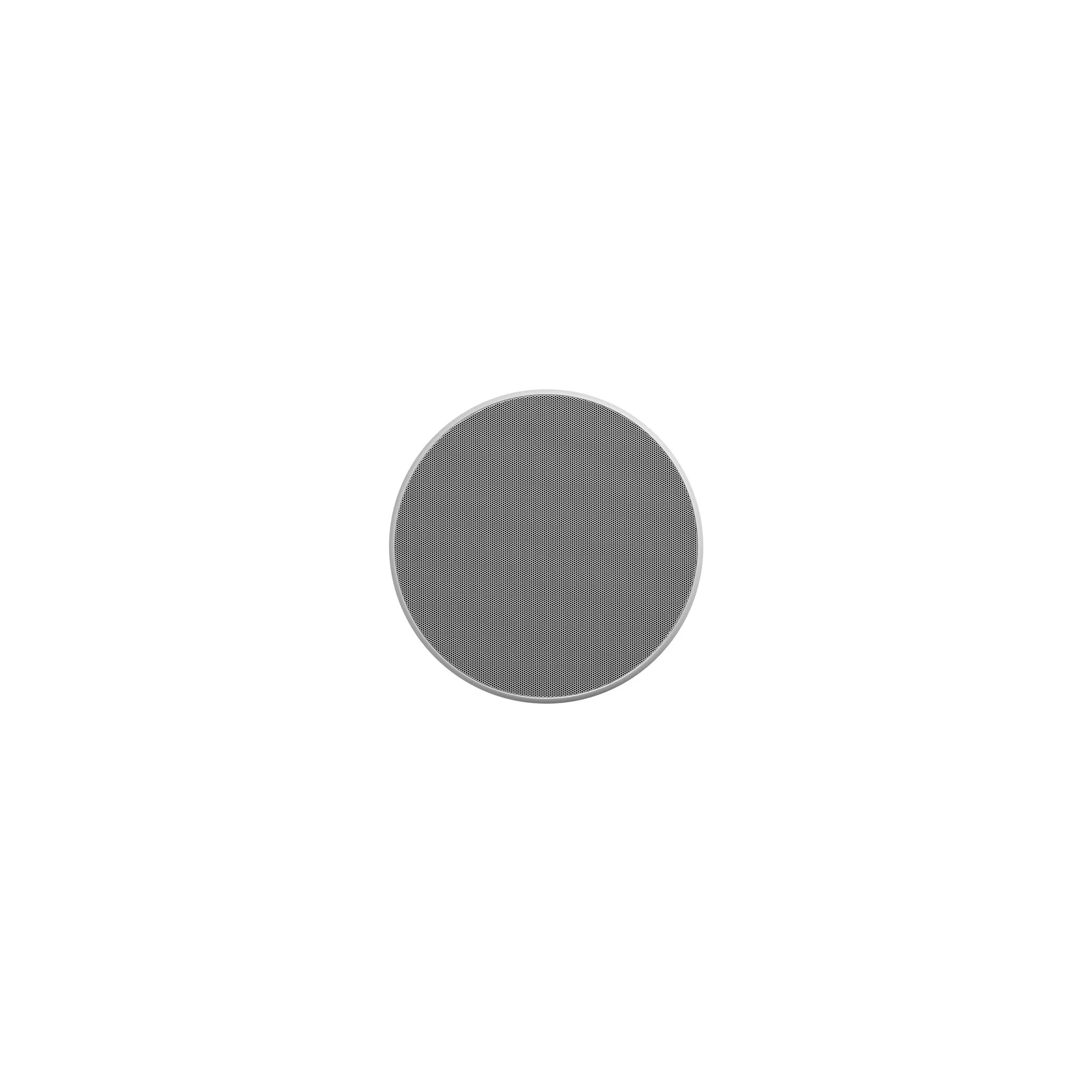

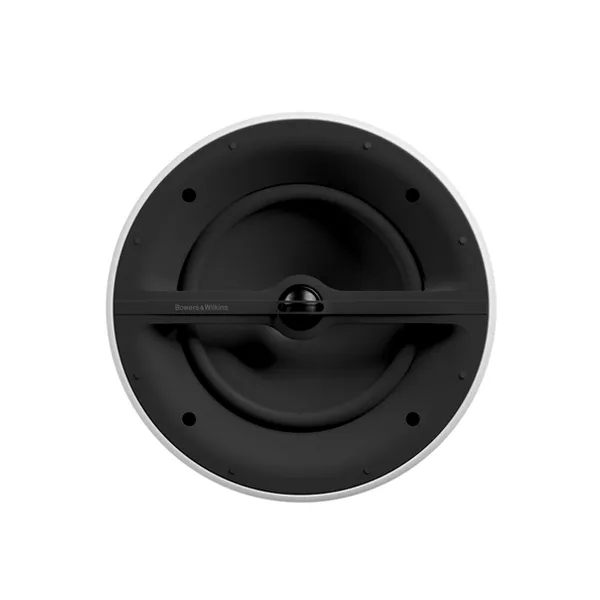

The CCM382 is a two-way in-ceiling loudspeaker, balanced for wide-angle listening. It comes with a choice of round or square baffles, and like all the models in the CI 300 Series it features an elegant minimal-width border design.
It features a 1 x 200mm (8 in) Polypropylene cone bass/midrange driver, and a 1 x 25mm (1in) soft dome tweeter.
All the models in the CI 300 Series are capable of offering great sound in high-humidity environments such as saunas and indoor swimming pools.
| Model | CCM382 |
| Description | 2-way in-ceiling system |
| Drive units | 1x 200mm (8in) Polypropylene cone bass/midrange 1x 25mm (1in) soft dome tweeter |
| Frequency Range (-6dB) | 45Hz - 30kHz |
| Sensitivity SPL (2.83V, 1m) | 90dB |
| Impedance Nominal (min) | 8Ω (5.0Ω) |
| Power Handling | 80W |
| Pre-mount Kit | PMK C8 |
| Frame Diameter | 290mm (11.4 in) |
| Cut-out diameter | 253mm (9.9in) |
| Depth behind surface | 85mm (3.4in) |
| Protrusion | 4mm (0.2in) |
