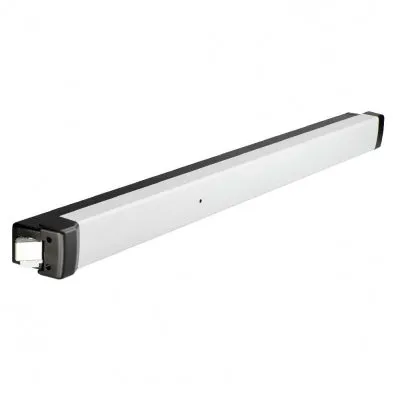

Adams Rite P8800 Series Pullman Rim Exit Devices Dark Bronze Anondized 36in Matching End Caps features include:

• Active pushbar and back bar made of extruded aluminum, available in choice of finishes.
• Device is non-handed.
• Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.
• Standard width bars can be field cut to the next smallest opening width.
• Can be used with trim on 1-3/4" thick doors, up to 2-1/4" door thickness.
• When cylinders are required, select rim cylinder length based upon door thickness.
• Minimum 2" stile. Fits ultra-narrow, narrow, medium, and wide stile aluminum doors.
• Standard cylinder dogging with 3/16” hex key.
• Device mounted using standard type ‘F’ self-tapping screws. Rivnuts are provided for the P8700 only.
• Horizontally adjustable strike assembly body made of Zamak 5 with hardened steel roller.
• Standard strike assembly suitable for centering doors in 4" jamb.
• Strike plate adjusts 1/4" horizontally.
